Project Overview

ARCScout is a scouting and data collection application I designed for ARC Team 10183, my FIRST Robotics Competition team. The app helps scouts collect match data, analyze team performance, and make informed decisions during alliance selection.

FRC games change every year, which means scouting requirements change too. A scouting app built for one season might be useless the next. ARCScout solves this by supporting configurable scouting forms that mentors can customize for each game. The app also integrates with The Blue Alliance API to automatically fetch event data, team lists, and match schedules, and with the Statbotics API to provide EPA-based performance analytics.

Role: Solo developer, including product design, frontend, backend, database architecture, API integrations, and real-time data synchronization.

Tech Stack: Next.js 15, TypeScript, Supabase, PostgreSQL, Tailwind CSS, The Blue Alliance API, Statbotics API, @dnd-kit, react-hook-form, Zod

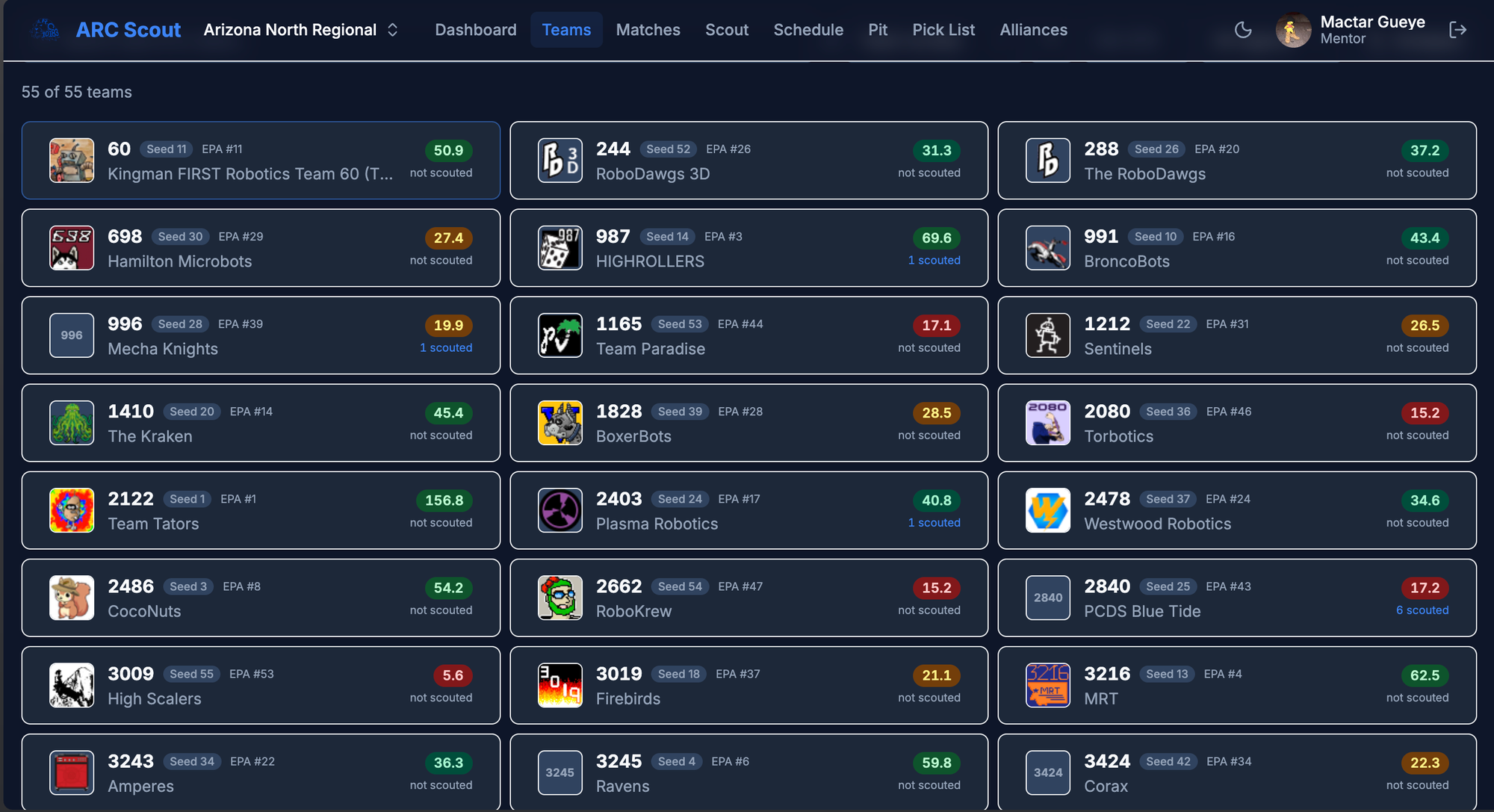

ARCScout team analysis dashboard

The Problem

Before ARCScout, our team used a combination of Google Forms and spreadsheets to collect scouting data at competitions. This created several problems:

Data entry was slow and error-prone on mobile devices during matches.
Scouting data lived separately from team statistics and match schedules.
Comparing teams required manually copying data between sheets.
Alliance selection decisions relied on scattered notes and memory.
There was no way to correlate our observations with objective performance metrics.

The goal of ARCScout was to give scouts a fast data entry interface, give strategists a unified view of scouting data and analytics, and give drive coaches a structured pick list for alliance selection.

The Solution

ARCScout provides a complete scouting workflow from event setup through alliance selection. The system pulls event data automatically from The Blue Alliance, overlays team performance statistics from Statbotics, and lets scouts fill out customizable forms during matches.

The core workflow:

Event setup with automatic TBA data import
Configurable scouting forms for each season
Mobile-optimized match scouting interface
Team summaries combining scouting data with EPA metrics
Kanban-style pick list for alliance selection
Pit scouting for robot specifications and photos

Instead of juggling multiple spreadsheets and websites, scouts and strategists work from a single system that keeps everything connected.

Key Features

Feature	What It Does	Why It Matters
TBA Integration	Imports events, teams, and matches automatically	Eliminates manual data entry for event setup
Statbotics Integration	Shows EPA ratings and performance trends	Provides objective metrics alongside subjective observations
Form Builder	Lets mentors configure scouting fields per season	Makes the app reusable across different FRC games
Mobile Scouting UI	Large touch targets and counters for fast entry	Reduces errors during live matches
Pick List Board	Drag-and-drop team ranking with tiers	Organizes alliance selection decisions visually
Team Comparison	Side-by-side view of scouting data and stats	Helps strategists evaluate trade-offs between picks

Technical Deep Dive: Configurable Forms

The most important architectural decision in ARCScout is the configurable form system. Since FRC games change every year, hardcoding scouting fields would make the app obsolete each January.

Instead, form definitions are stored as JSON schemas in the database. Each form contains an array of field definitions with properties like type, label, section, and validation rules.

Supported field types:

text and textarea for comments
number with optional min/max constraints
boolean for yes/no questions
select and multi_select for choice fields
rating for 1-5 star ratings
counter for tap-to-increment values (game piece counts)

Form sections organize fields by match phase:

Pre-match (team number, starting position)
Auto (autonomous period observations)
Teleop (teleoperated period observations)
Endgame (climbing, parking)
Post-match (overall impressions, comments)

The frontend renders forms dynamically based on the JSON schema. A FieldRenderer component maps field types to the appropriate UI components. This means mentors can create entirely new forms through the UI without any code changes.

interface FormField {
  id: string;
  label: string;
  type: 'text' | 'textarea' | 'number' | 'boolean' | 'select' | 'multi_select' | 'rating' | 'counter';
  section: 'pre_match' | 'auto' | 'teleop' | 'endgame' | 'post_match';
  required: boolean;
  options?: string[];
  min?: number;
  max?: number;
}

Form templates can be saved and reused across events in the same season. This lets the team refine their scouting approach during the year without rebuilding from scratch.

Technical Deep Dive: API Integrations

ARCScout integrates with two external APIs to provide comprehensive team information.

The Blue Alliance API

The Blue Alliance is the primary source for official FRC data. When a mentor enters an event code like 2026nvlv, ARCScout fetches:

Event name, dates, and location
Complete team list with team names and locations
Full match schedule including qualifications and playoffs

This data is cached in Supabase so the app works even when TBA is slow or unavailable. The match schedule powers the scouting queue, showing scouts which matches are coming up and which teams they need to watch.

Statbotics API

Statbotics provides EPA (Expected Points Added) ratings that quantify how much a team contributes to alliance scores. ARCScout fetches EPA breakdowns for each team:

Total EPA
Auto EPA
Teleop EPA
Endgame EPA
Win rate and ranking

These metrics appear alongside scouting data on team profile pages. Scouts can see both objective performance numbers and subjective observations in one place.

Confidence indicators flag discrepancies between scouting data and EPA ratings. If a low-EPA team performs well in scouting observations, the app highlights them as a potential hidden gem. If a high-EPA team has concerning scouting notes, strategists can investigate further.

Pick List System

The pick list is a Kanban-style board for organizing alliance selection decisions. Teams are sorted into five columns:

Tier 1	Tier 2	Tier 3	Do Not Pick	Uncategorized
Top picks	Strong picks	Decent picks	Avoid	Not yet ranked

When an event is loaded, all teams start in Uncategorized. As the team analyzes scouting data and statistics, they drag teams to appropriate tiers and reorder within tiers to set priority.

Pick list features:

Drag and drop with @dnd-kit for smooth interactions
EPA badges on each team card for quick reference
Notes field for recording discussion points
Lock teams when they are picked by other alliances
Alliance tracking to record which teams form alliances
Filter by team number, name, or EPA range
Print view for paper backup during selection

The pick list combines the team's scouting observations with Statbotics data, giving drive coaches a structured tool for making fast decisions during alliance selection.

Match Scouting Workflow

The match scouting interface is optimized for speed and accuracy during live matches.

Scouting queue shows upcoming matches from the TBA schedule. Scouts can see which matches they are assigned to and which robot position they are watching (red 1, blue 1, etc.).

Live scouting view provides:

Large touch targets for mobile devices
Counter buttons that can be tapped rapidly for game piece counts
Toggle switches for boolean observations
Timer showing the current match phase (auto/teleop/endgame)
Quick submit button to save and load the next assignment

Scouter assignments (optional) let lead scouts pre-assign team members to specific robots and matches. This prevents duplication and ensures coverage across all teams.

The interface prioritizes minimal typing. Most inputs are taps, toggles, and counters. Text fields are reserved for comments and notes that require qualitative input.

Data Model

The database structure centers around events, matches, forms, and scouting entries.

events
├── event_teams (cached from TBA, includes Statbotics EPA)
├── matches (cached from TBA)
├── scouting_entries
│   └── linked to form definitions
└── pick_lists
    └── pick_list_teams (with tier and position)

scouting_forms
└── form field definitions (JSON)

Scouting entries store the actual data collected by scouts. Each entry links to an event, a match (for match scouting) or null (for pit scouting), a form definition, and the scouter who submitted it. The scouting data itself is stored as JSONB, keyed by field ID.

This structure lets the app store data from any form configuration without schema changes. Adding a new field to a form just means new keys appear in the data JSONB column.

Pit Scouting

Pit scouting collects robot specifications and capabilities before matches begin. Scouts visit team pits to document:

Robot dimensions and weight
Drivetrain type
Scoring mechanisms
Autonomous capabilities
Photos of the robot

Pit scouting uses the same configurable form system as match scouting. A separate form template handles pit-specific questions.

The team list page shows which teams have been pit scouted, making it easy to track coverage and identify teams that still need visits.

Permissions Model

ARCScout uses the shared authentication system from the ARC suite. Permissions are role-based:

Role	Permissions
Mentor	Create events, manage forms, edit pick lists, view all data, assign scouters
Student	Fill out scouting forms, view data, view pick lists (read-only by default)

Optional granular permissions allow mentors to delegate:

can_edit_pick_list for trusted students to modify rankings
can_create_forms for lead scouts to build forms
lead_scout role for students with elevated privileges

Row-level security policies enforce these permissions at the database level.

Mobile Optimization

Scouting happens on phones and tablets in noisy competition venues. The interface is designed for these conditions:

Large touch targets (minimum 44px) for all interactive elements
Counter buttons that respond to rapid tapping
Portrait orientation optimized for one-handed use
Minimal scrolling required during active scouting
High contrast colors for visibility in bright arenas

The form layout adapts to screen size. On phones, sections display vertically with collapsible headers. On tablets, sections can display side-by-side for faster scanning.

Offline Support (Planned)

Competition venues often have unreliable wifi. A future version will add:

Service worker for offline page access
IndexedDB for local data storage
Background sync when connection restores
Visual indicator showing sync status

For now, the app works best with a mobile data connection as backup.

Technical Challenges

The hardest part of ARCScout was designing the configurable form system to be flexible enough for any FRC game while keeping the UI fast and intuitive. Too much flexibility would make form creation confusing. Too little would limit the app's usefulness across seasons.

The solution was a structured field type system with clear purposes. Instead of arbitrary field configurations, each type has defined behavior. A counter always increments on tap. A rating always shows five stars. This constraint makes forms predictable for scouts while giving mentors enough flexibility to model any game.

Integrating multiple external APIs also required careful error handling. TBA and Statbotics can be slow or unavailable during high-traffic competition weekends. The app caches aggressively and gracefully degrades when APIs are unreachable.

Impact

ARCScout centralizes the scouting workflow that previously required multiple spreadsheets, forms, and websites. Scouts have a faster interface for data entry. Strategists have unified views combining subjective observations with objective metrics. Drive coaches have a structured pick list instead of scattered notes.

The configurable form system means the app will remain useful as FRC games change. Instead of building new scouting tools each season, the team can focus on refining their scouting strategy.

What I Learned

ARCScout taught me how to design flexible systems that can adapt to changing requirements without becoming overly complex. The form builder approach means the app can support use cases I have not anticipated yet.

I also gained experience integrating multiple external APIs and handling the reliability challenges that come with depending on third-party services. Caching, graceful degradation, and clear error messages became important parts of the user experience.

The drag-and-drop pick list pushed me to learn @dnd-kit and think carefully about keyboard accessibility and touch interactions.

Future Plans

The next major features are:

Full offline support with service worker and IndexedDB
Super scouting for alliance-level observations
Advanced analytics dashboard with performance trends
Match predictions using Statbotics data
PWA installation for mobile home screens

Tech Stack

Area	Tools
Frontend	Next.js 15, TypeScript, Tailwind CSS
Backend	Supabase, PostgreSQL, Server Actions
Auth	Supabase Auth, Row-Level Security
APIs	The Blue Alliance API, Statbotics API
Forms	react-hook-form, Zod
Drag & Drop	@dnd-kit/core
Deployment	Vercel, Supabase
